A Thermoelectric Cooler (Peltier Device) is a solid-state active heat pump which transfers heat from one side of the device to the other, with consumption of electrical energy (DC power) depending on the direction of the current.
Properties of a typical Thermoelectric Cooler (TEC) Module

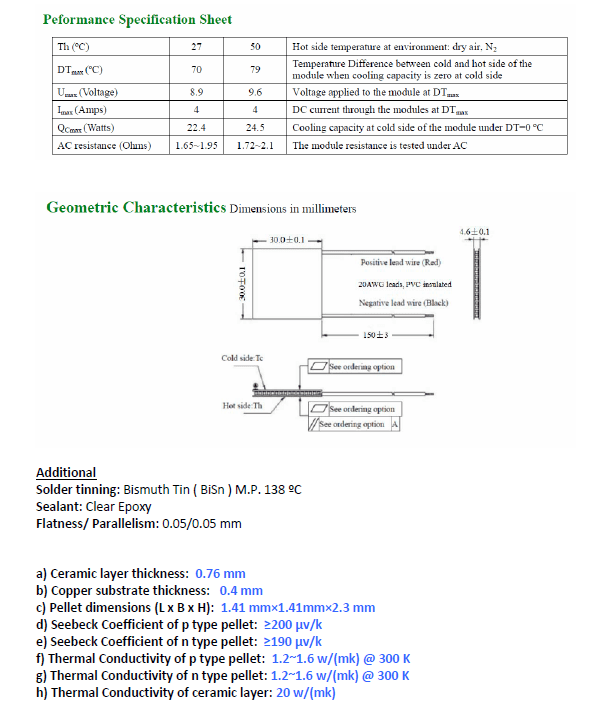

A typical 71 thermocouple module TEC1-07103
A typical 127 thermocouple module TEC1-12706
